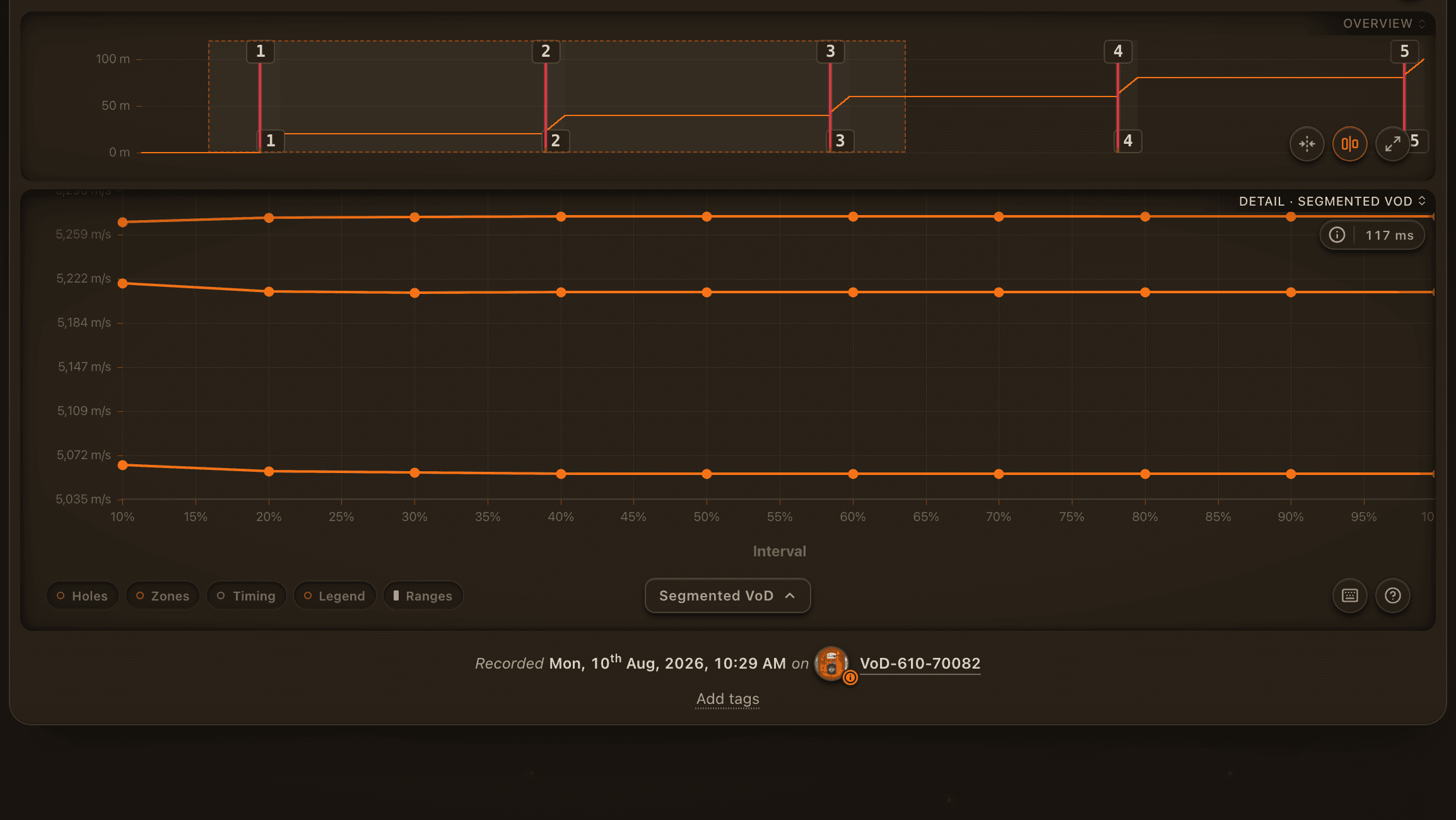

Segmented VoD
Each zone read cumulatively, at points along its length, so a front still running up shows as a rising line.
VoD Analyser
Velocity of detonation,
hole by hole, zone by zone
One cable trace becomes a VoD for every charged deck, every hole and the whole shot, set against the plan you fired.
Filmed in the ShockAI demo: Hamersley North, a synthetic iron-ore mine.
At a glance
Review a shot the way you would on paper
Three reads of one trace, the planned timing over the recorded cuts, and every toe side by side. Every picture here is the product, captured.

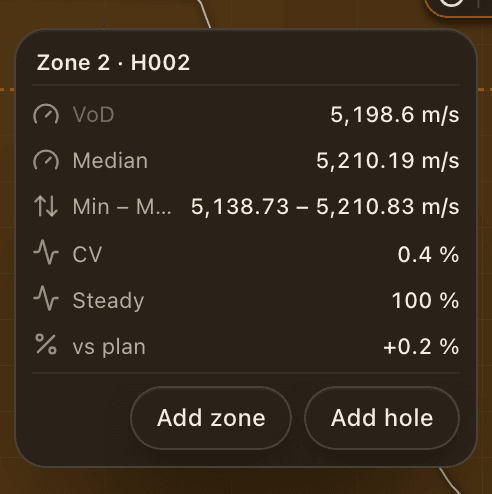

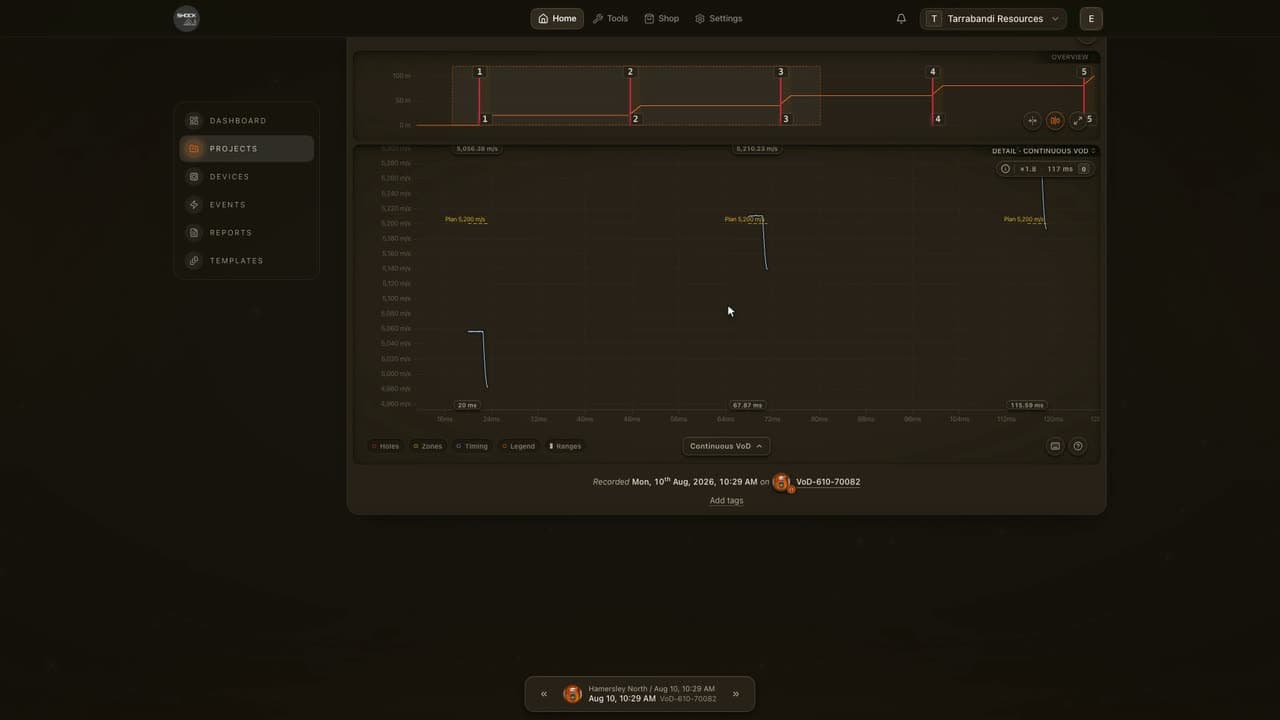

Did the front reach design VoD?. Continuous VoD against the planned line, segmented VoD zone by zone, and the raw cable length: three reads of one trace.
Did every hole fire on time?. Lay each hole’s planned firing time over the trace and see where every cut landed.

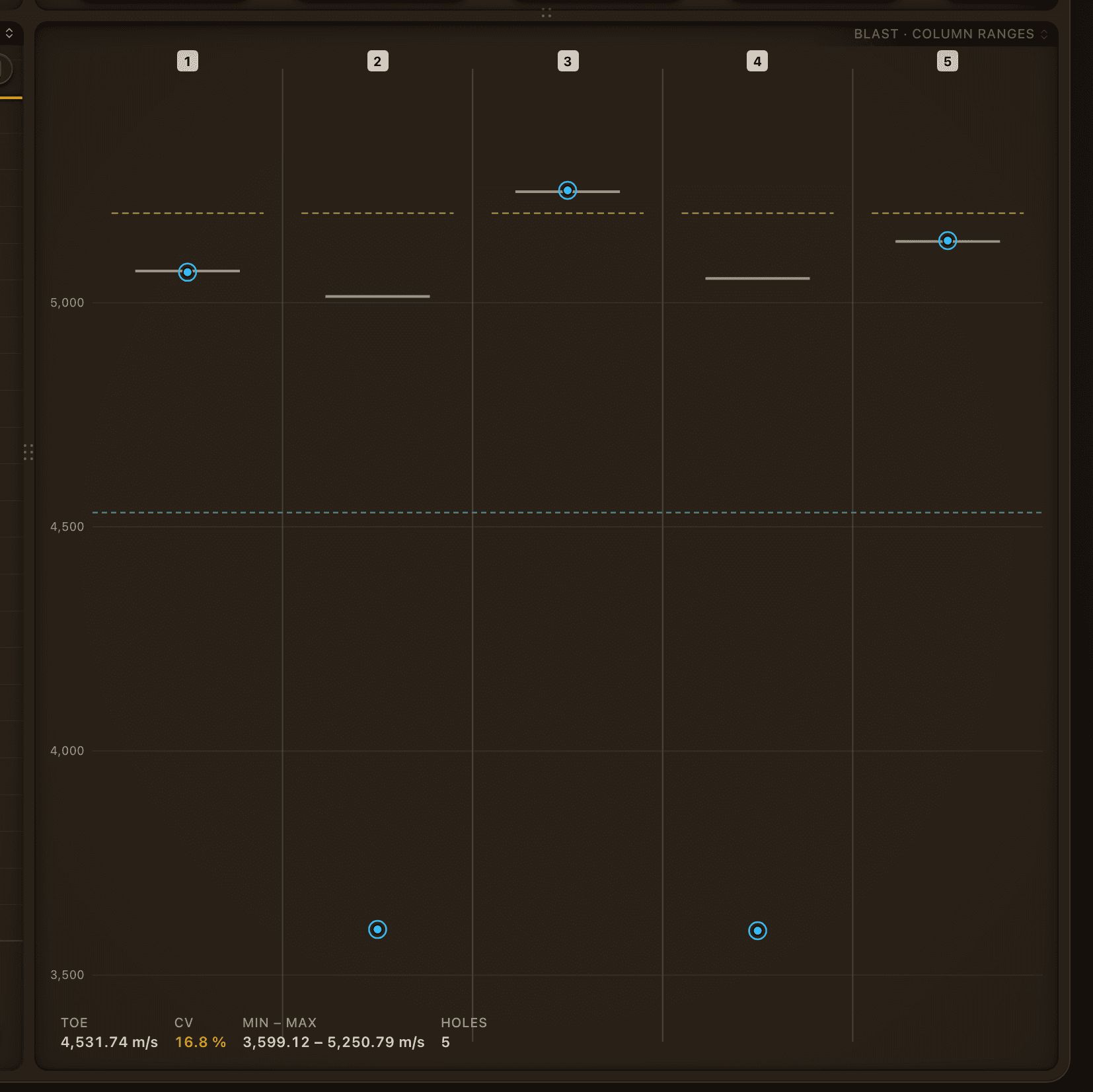

Which hole’s toe stands out?. Read the same stretch of every hole side by side. Anything more than a tenth from its range’s mean is flagged.

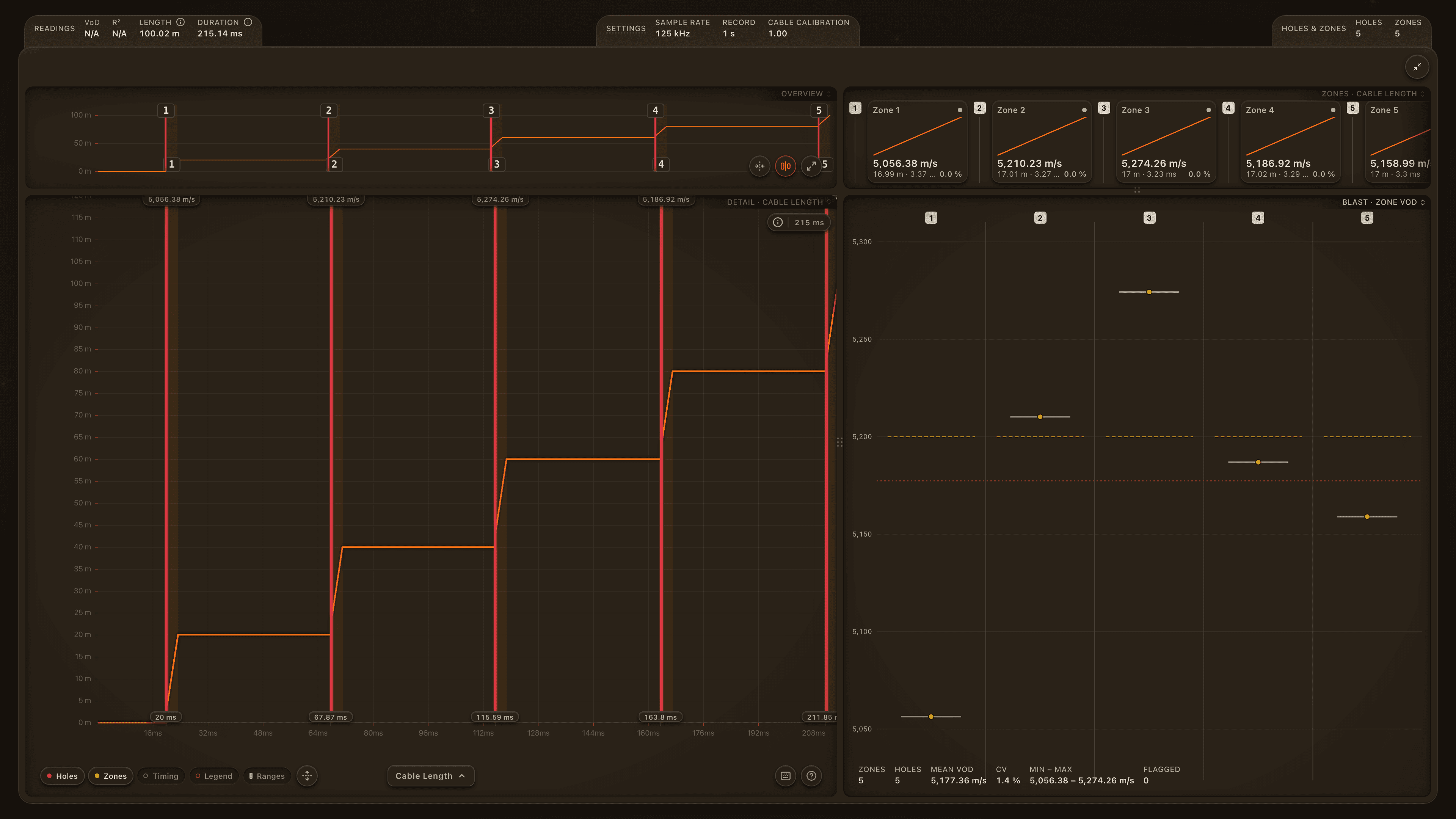

Review the whole shot in full screen. Traces on the left, a card per zone on the right, and a well that reads what you focus.
Holes and zones you can fix. Place a hole at the pointer, make a zone from a stretch of trace, and edit both from the keyboard.
Look closer
Built to be checked
Each figure sits beside the plan it is judged against.

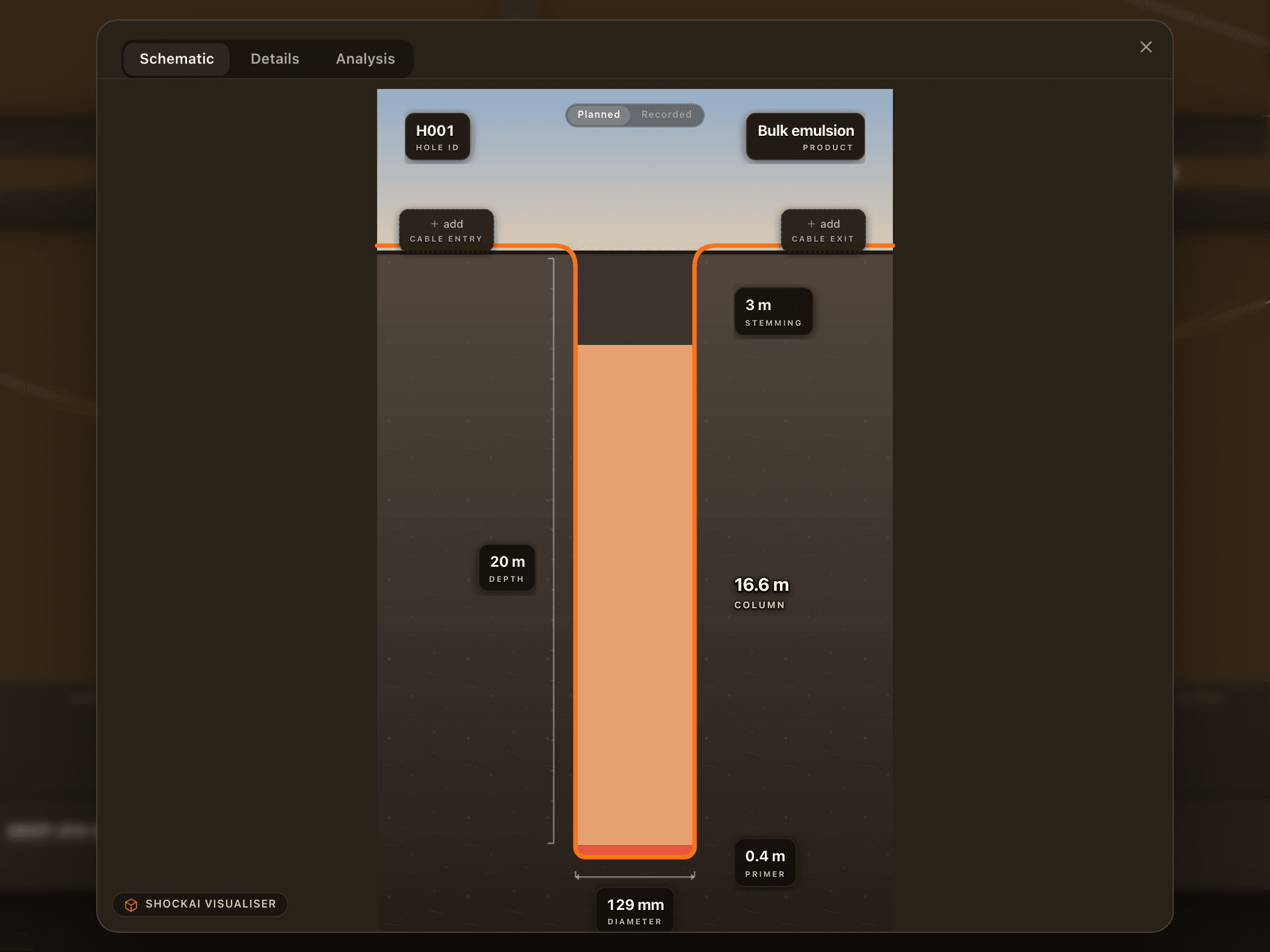

Every hole, in section
Its fields, its charge column, and what the analysis read in it.

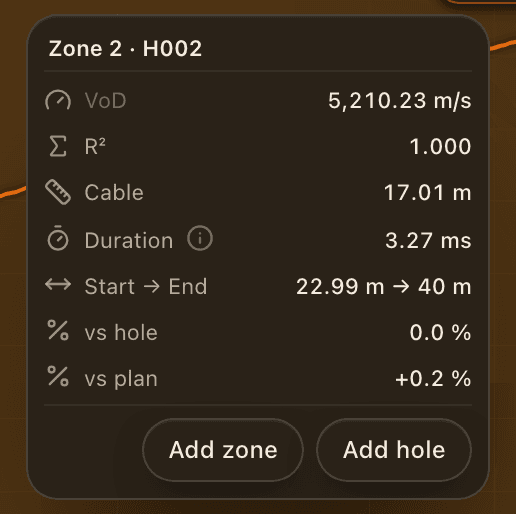

A zone against its hole and its plan
Its VoD, its fit, and how far it sits from its hole’s average and from the plan.

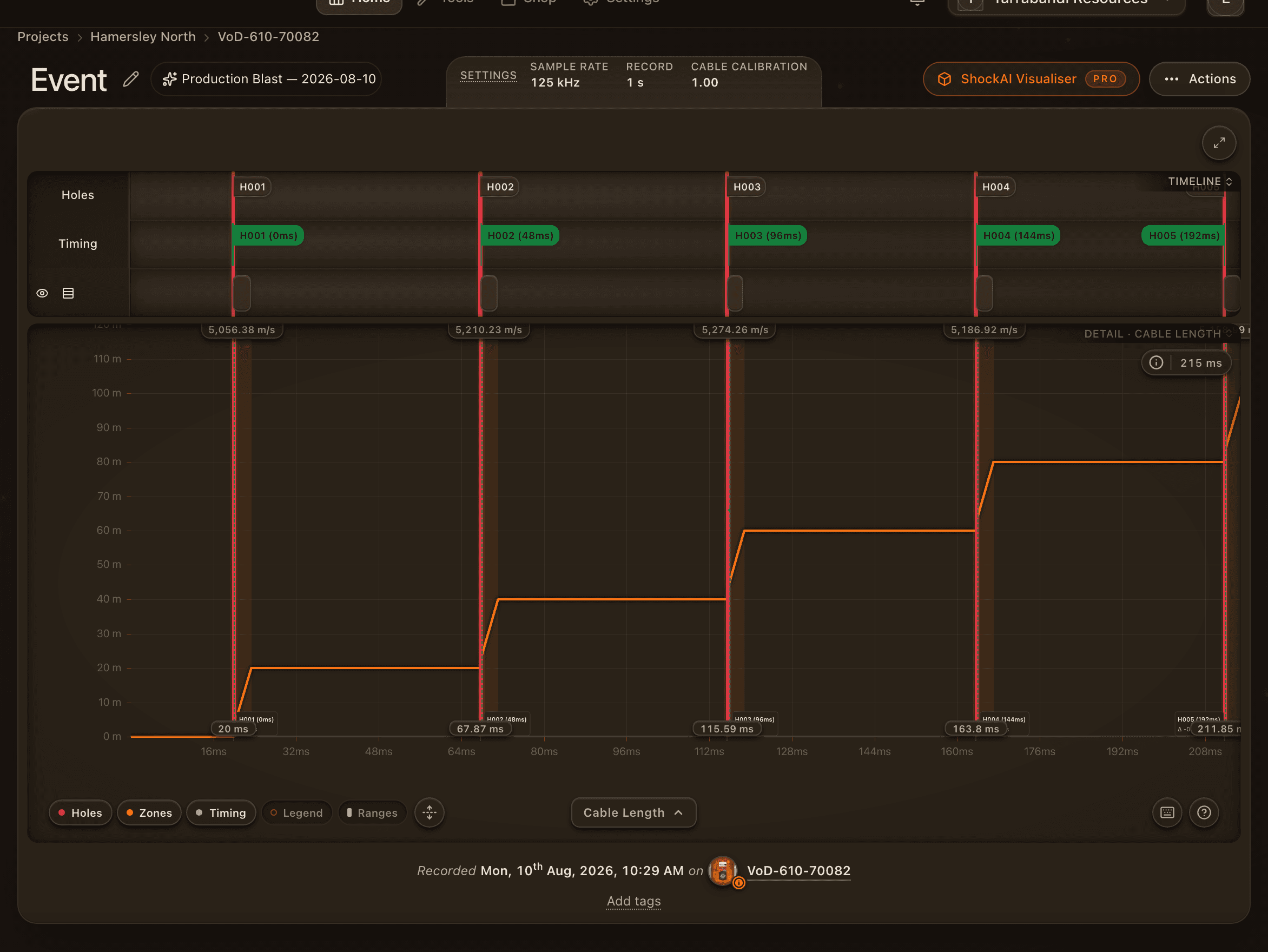

Every cut on its marker
With the offset set, each recorded cut lines up with its planned firing time.
Watch
The whole analyser in 5 minutes
Narrated and captioned, with a chapter for each part. Jump to what you need.
The instruments
Built for the ShotTrack VoD range
Specifications, pricing and quotes are on the ShotTrack site.
More of the platform
Learn the physics
Plain-language explainers on the ShotTrack site.
Guides
Every chapter has a guide
The docs walk through each part of the VoD Analyser with the same captures.
Closed beta
Bring your next blast
We’re refining ShockAI with a small group of mining and construction teams. Tell us about your sites and your instruments.
