Where the energy sits

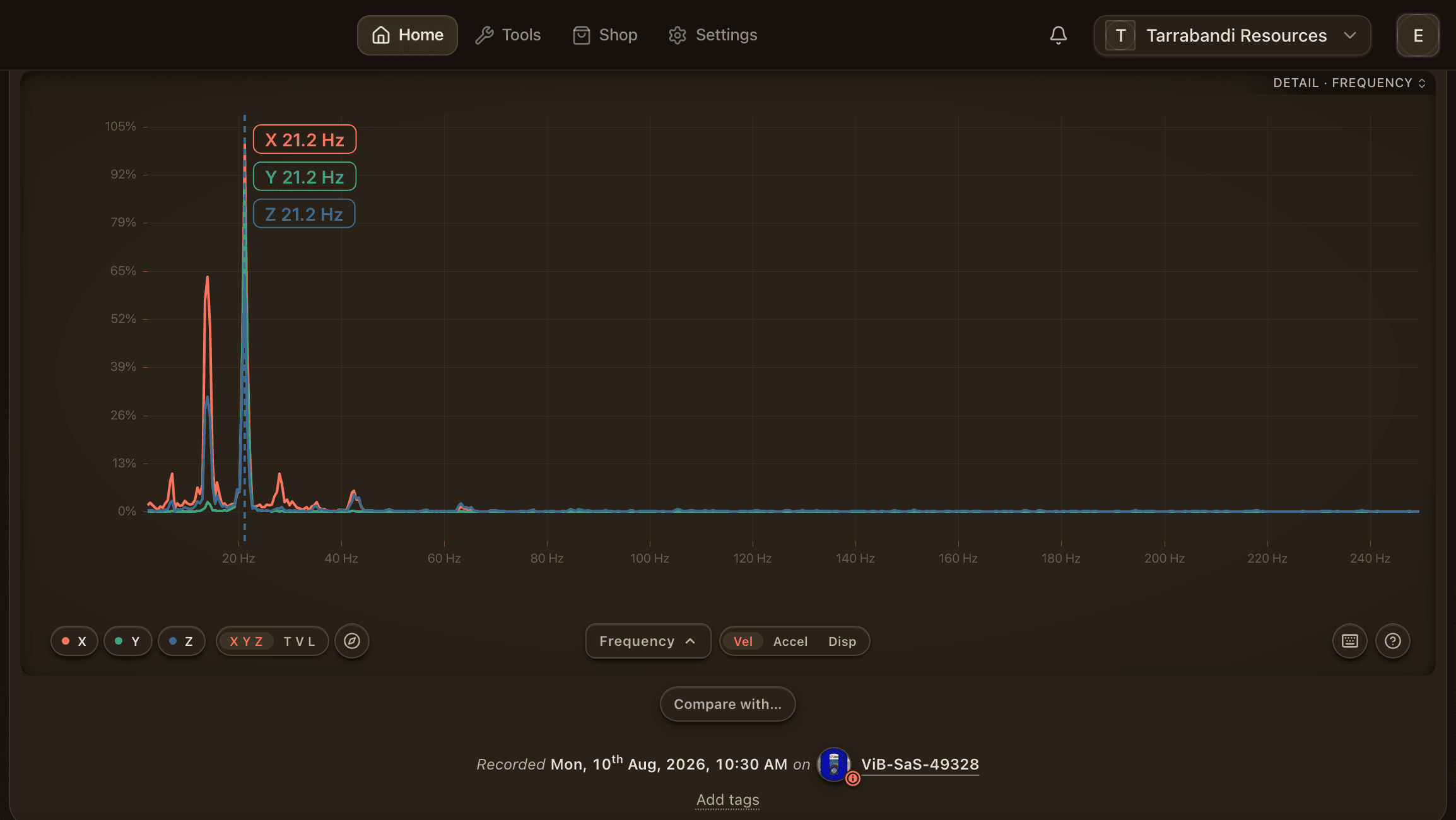

The same velocity does different damage at different frequencies. The spectrum shows which you have.
ViB Analyser
Every vibration event,
read with the working shown
Frame the arrival, measure it, see how the ground moved, and score it against every limit your project applies. One event, one screen, every figure explained.
Filmed in the ShockAI demo: Hamersley North, a synthetic iron-ore mine.
At a glance
The moves you make on every event
Measure an arrival, turn the ground motion to face the blast, and see how close each limit came. Every picture here is the product, captured.

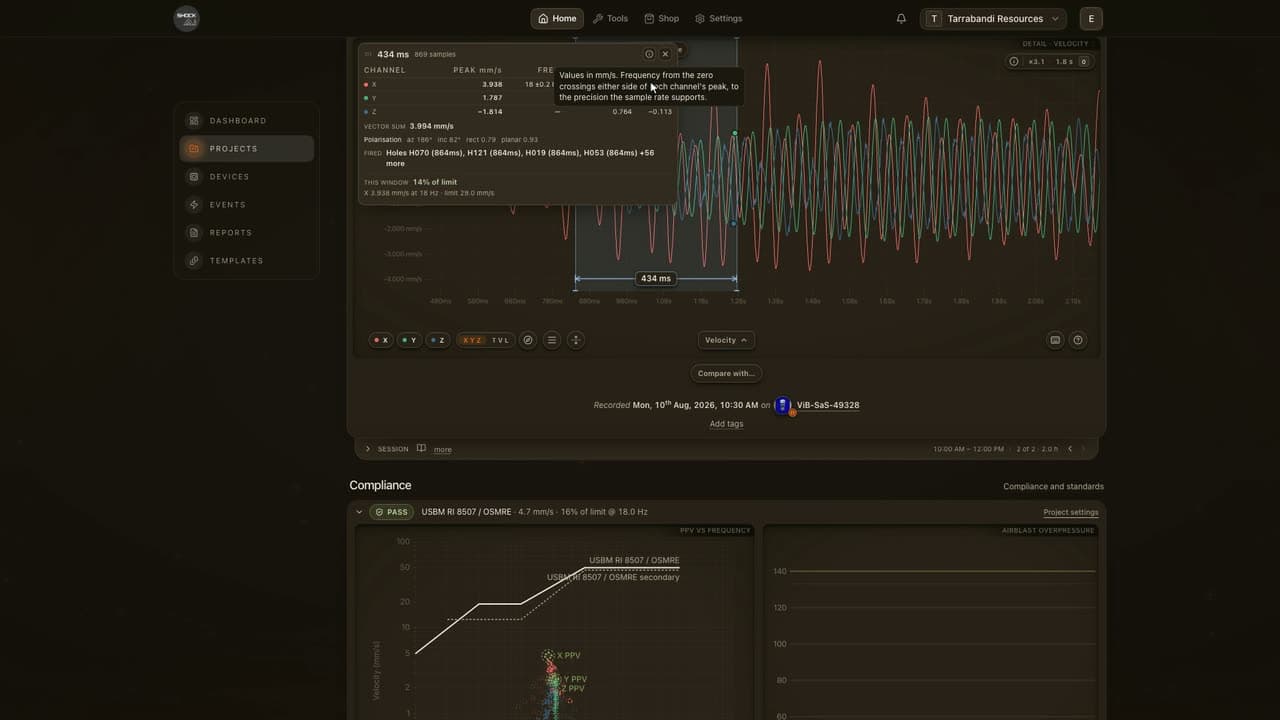

How big was the arrival, at what frequency?. Drag across it for the span’s duration and each channel’s peak, frequency and RMS.
By invitation
Which way did the ground move?. Three channels become one path. Turn it until the first push lines up with the blast.
How close did each limit come?. Every limit your project applies, the reading it governs, how much of it you used, and the verdict.

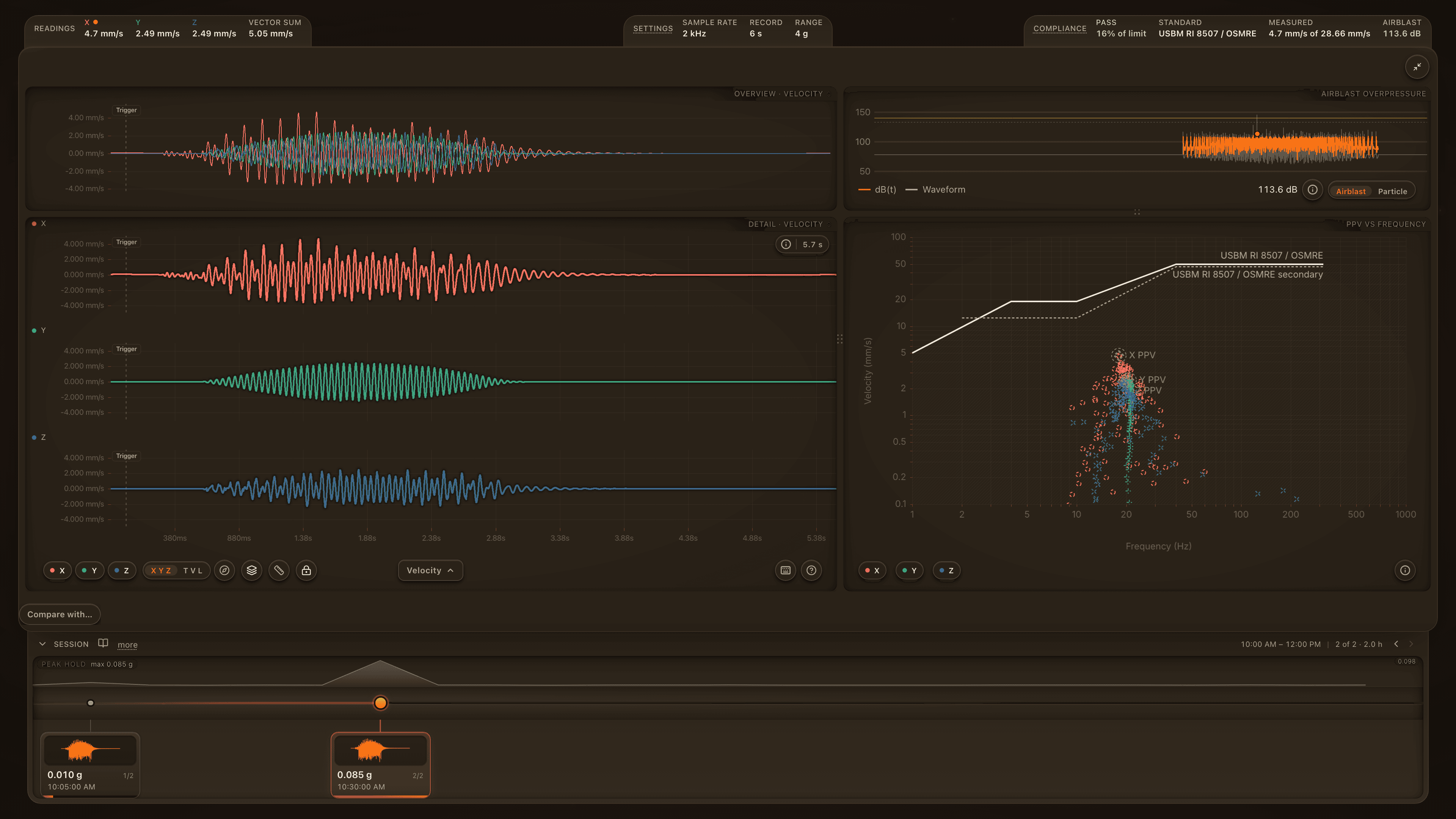

Everything on one screen. Press F: traces on the left, compliance on the right, nothing to scroll.
Read each axis on its own. Stack the axes one pane each, then share one scale so heights compare.
Look closer
Built to be checked
Every reading says how it was worked out.

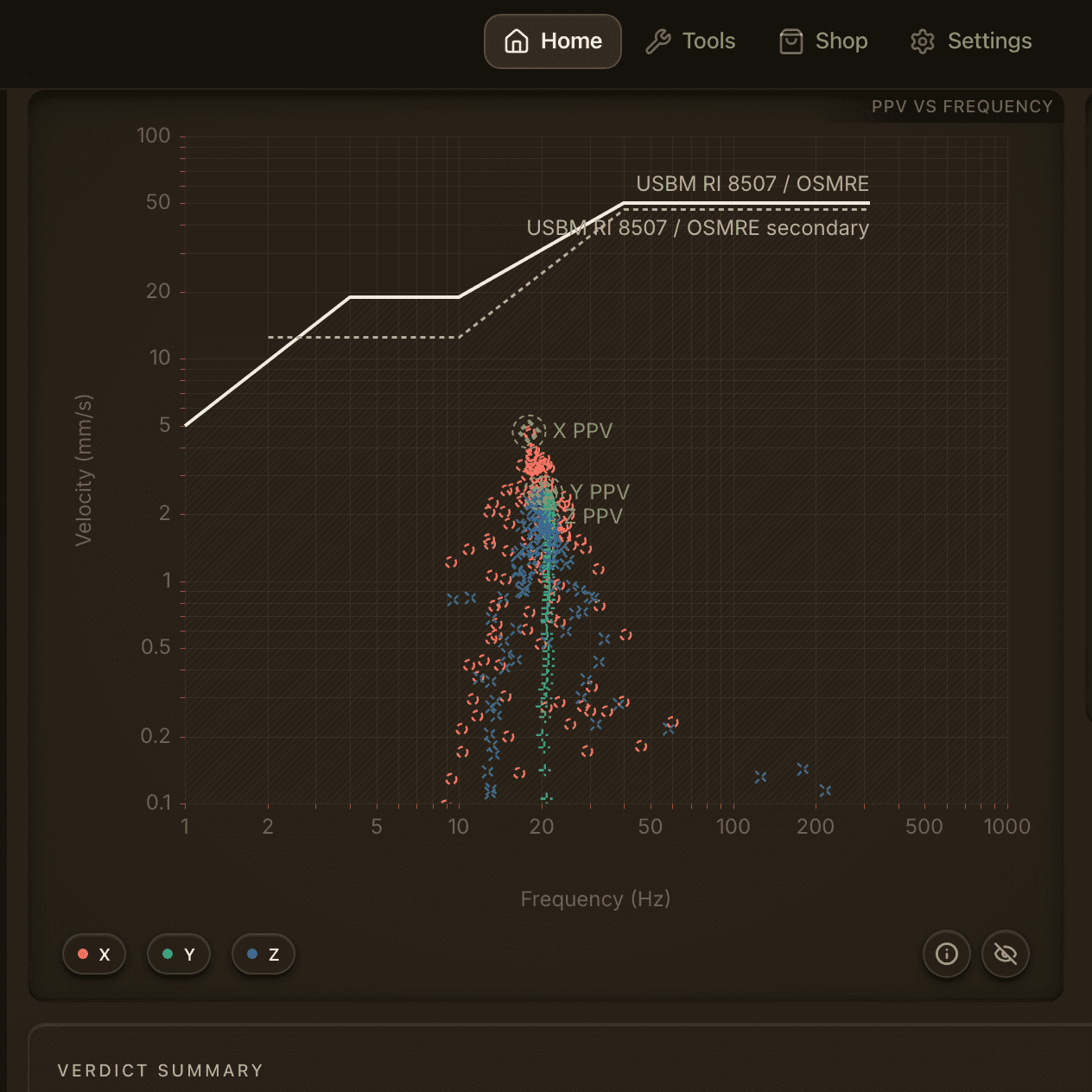

Peak velocity against the curves
Each channel’s peak at its dominant frequency, against every limit curve you apply.

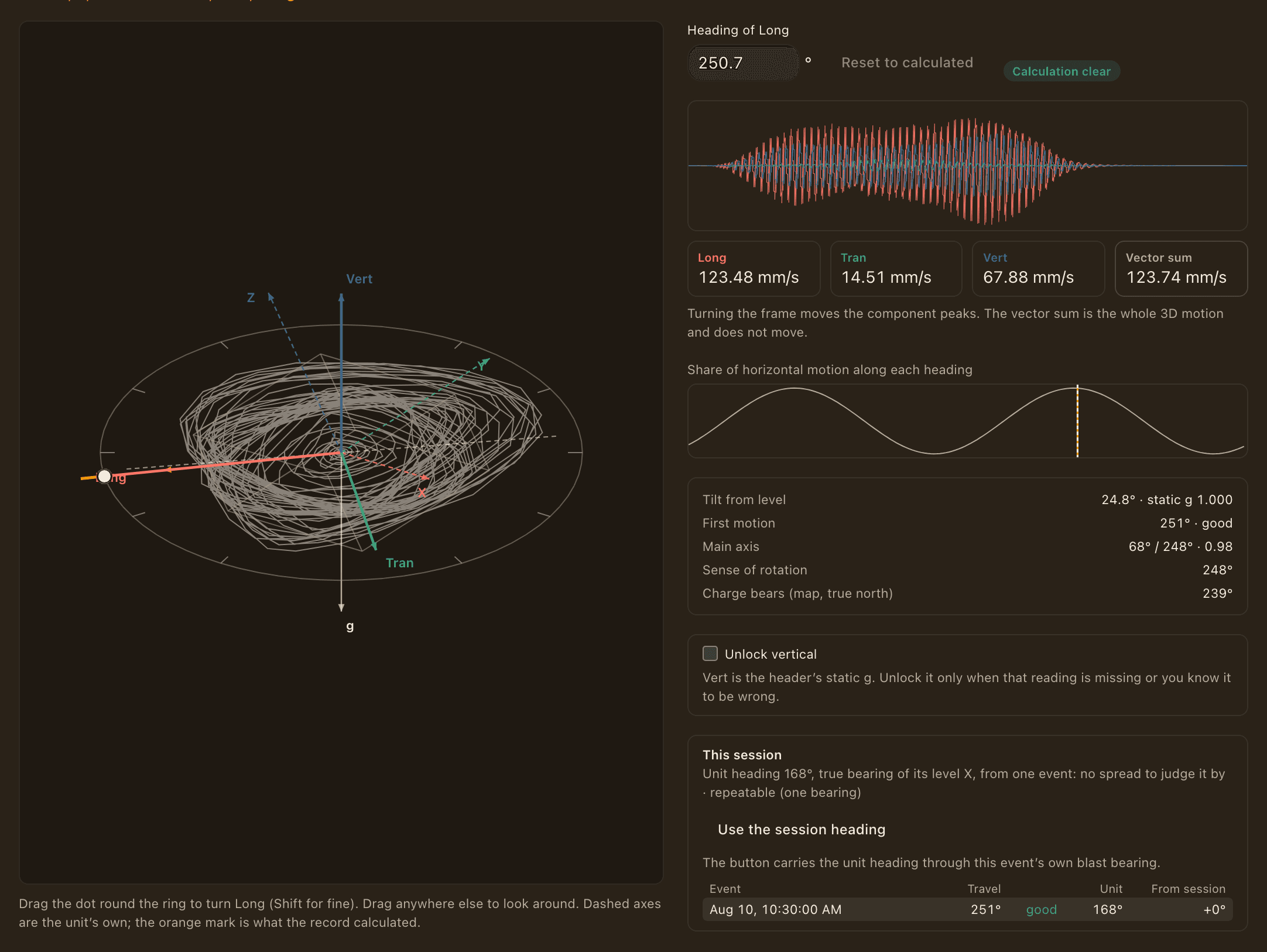

How the frame was found
The unit’s own axes, gravity and the calculated heading, with how clear the answer was.

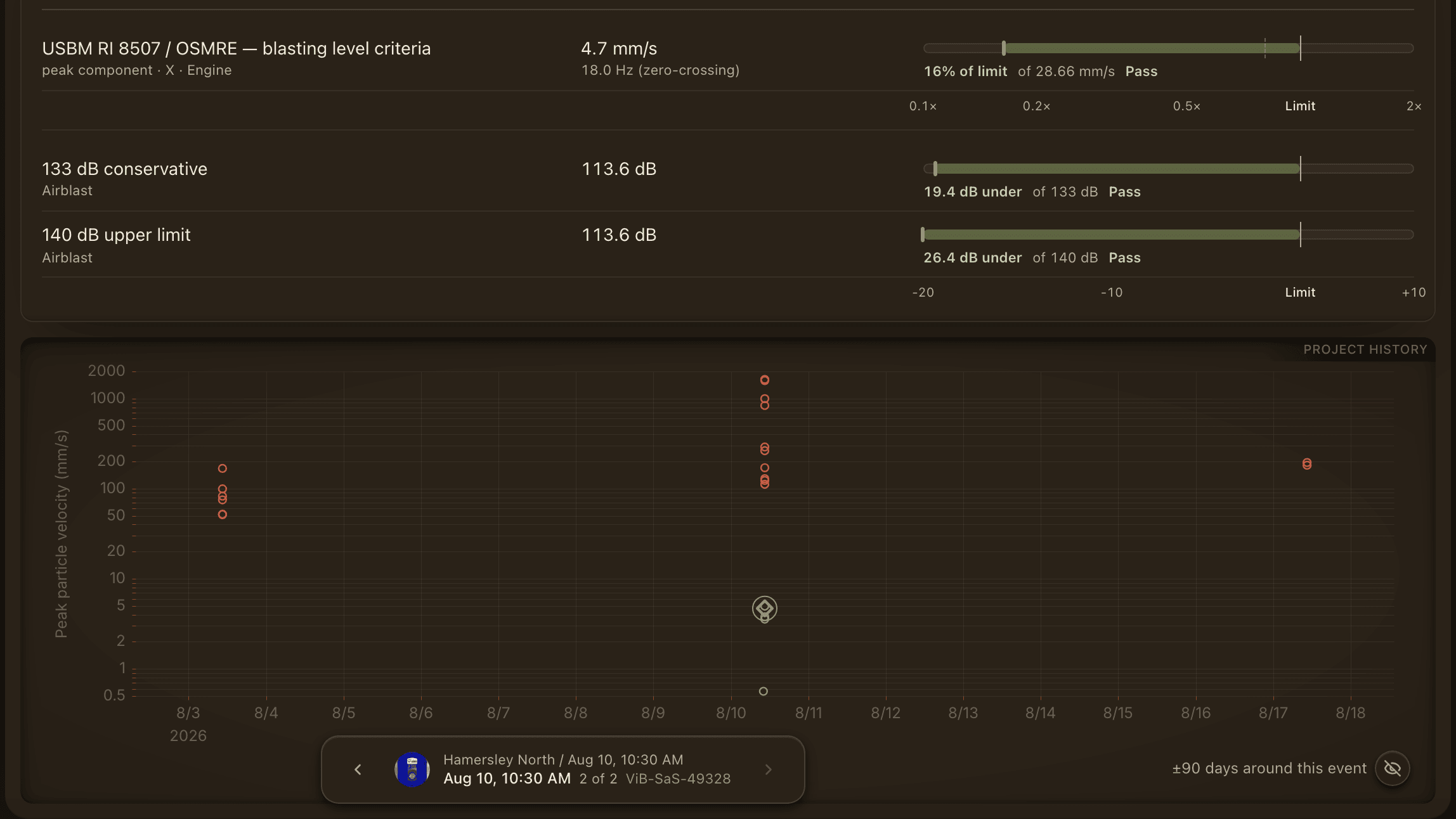

This event among the rest
Every scored event in the project on one chart, so an outlier stands out.

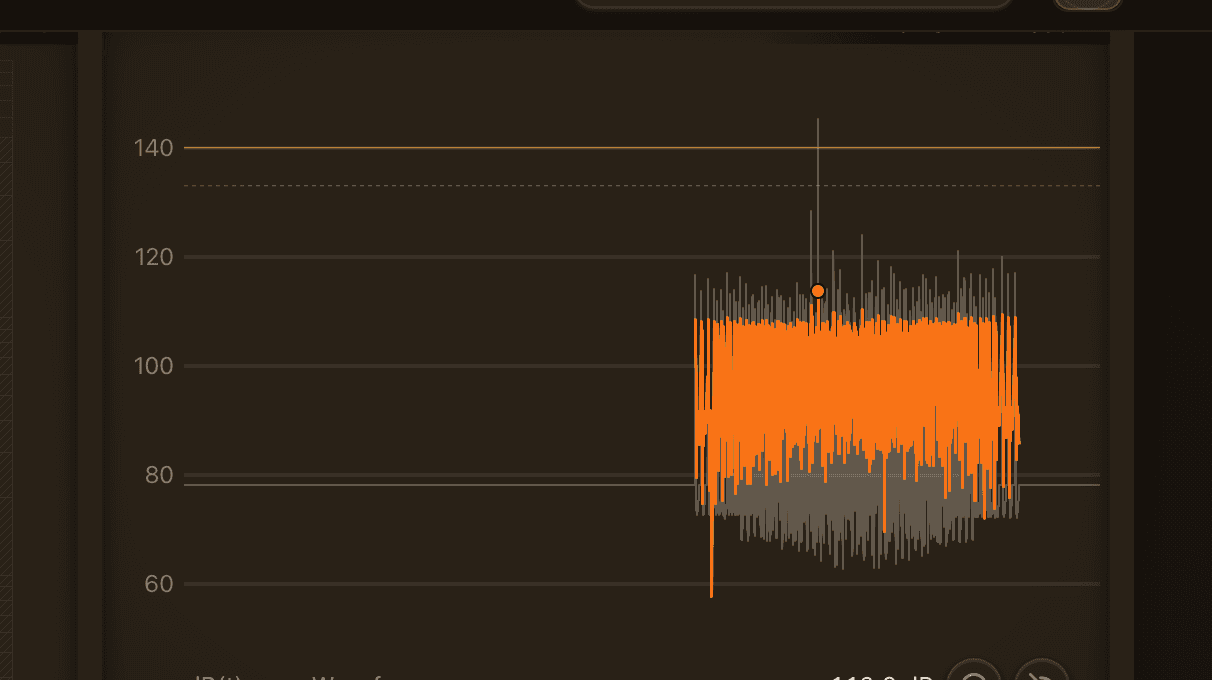

Airblast on its own trace
The overpressure record reads beside the ground motion, peak and all.

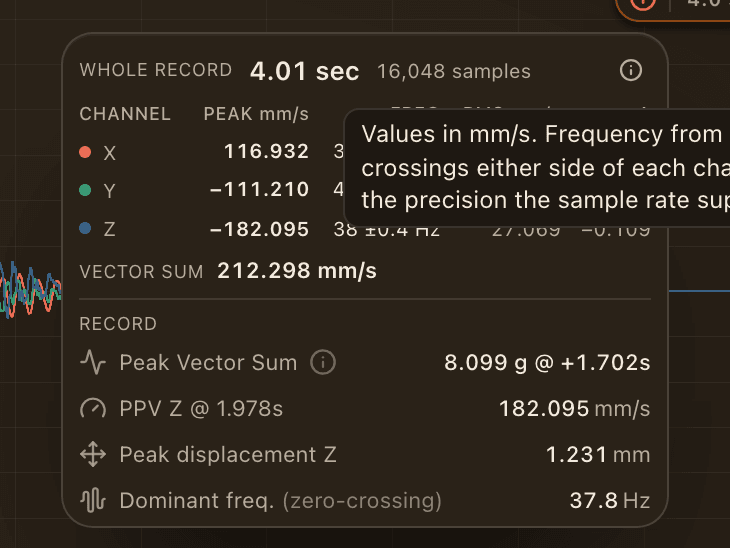

Every figure has its formula
Peaks, frequencies, RMS and the vector sum for the window in view, each with an explanation.
Watch
The whole analyser in 6 minutes
Narrated and captioned, with a chapter for each part. Jump to what you need.
The instruments
Built for the ShotTrack ViB range
Specifications, pricing and quotes are on the ShotTrack site.
